IDC Liquid Cooling Project

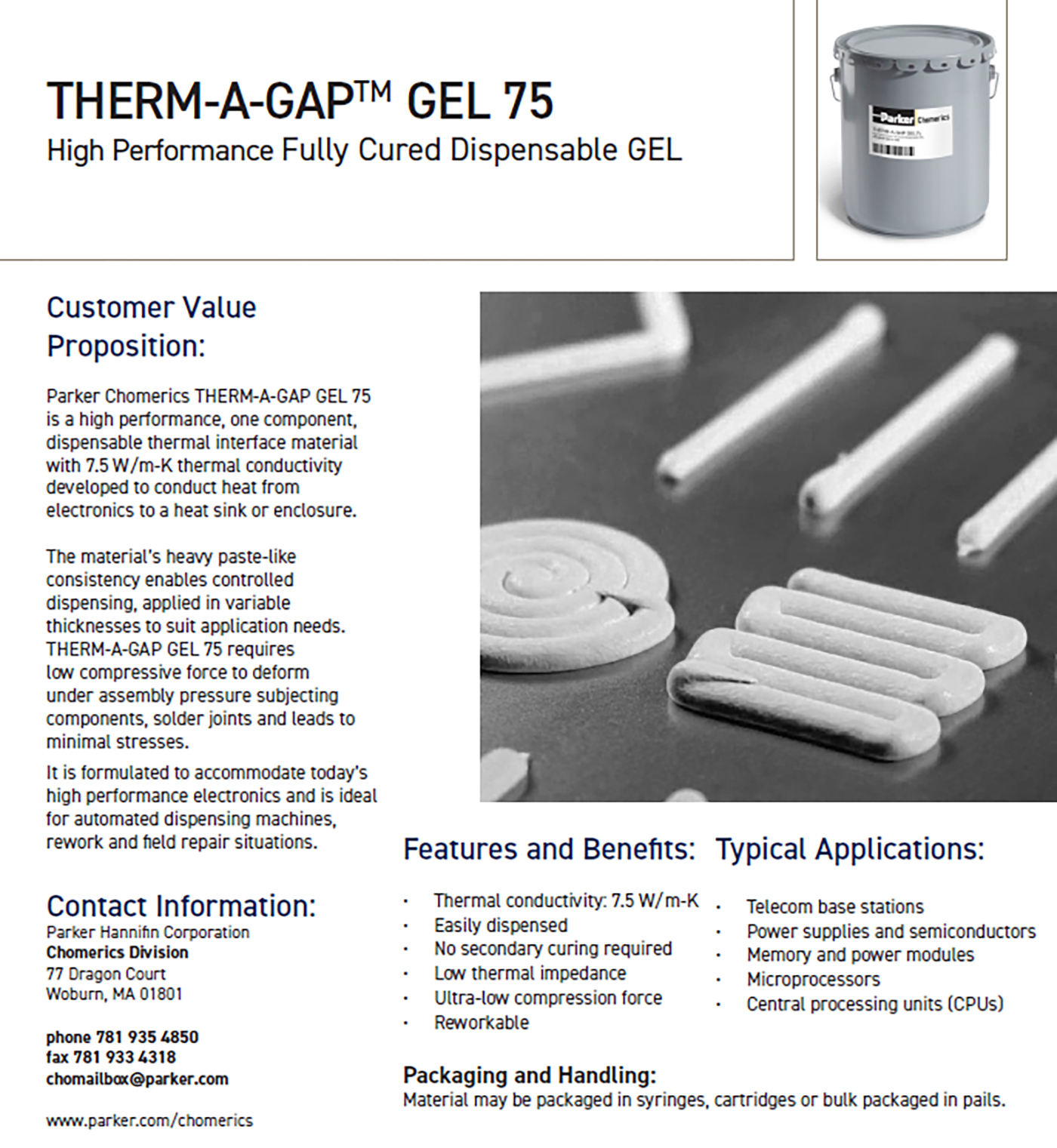

Since the GPU has a height tolerance of +/-0.15 and the heatsink copper block has a tolerance of +/-0.10, a 0.3mm gap is reserved. A thermal grease with 7.5W/mk is used (as shown in the bottom image), with the simulated thickness set at a maximum of 0.6mm and K value at 6.0W/mk (actual is 7.5W/mk).

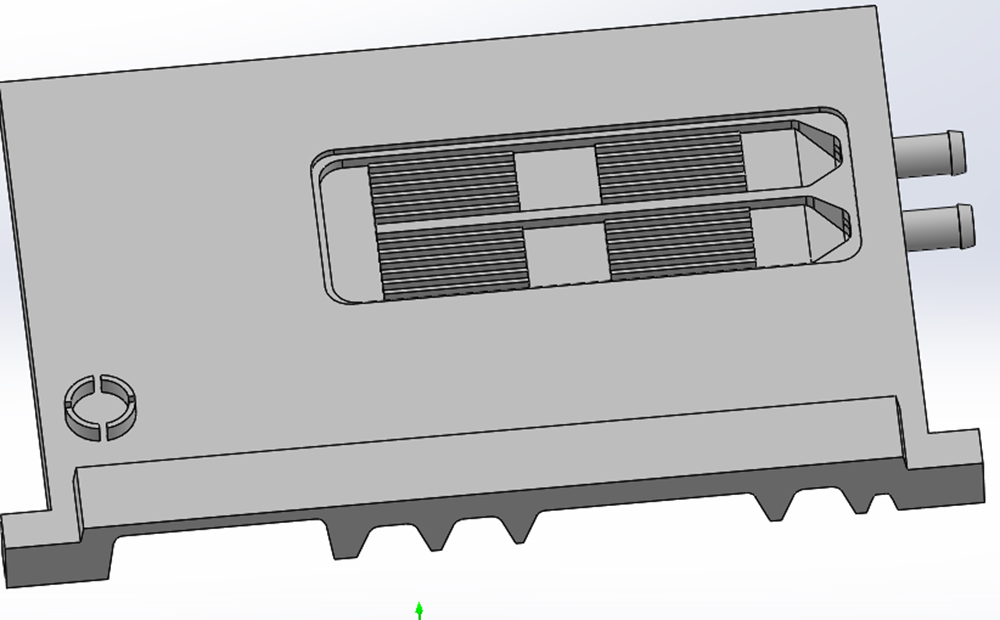

Change to 5mm width to allow friction welding in the middle, ensuring the rib and cover plate are welded together
● Change to 5mm width to allow friction welding in the middle, ensuring the rib and cover plate are welded together.

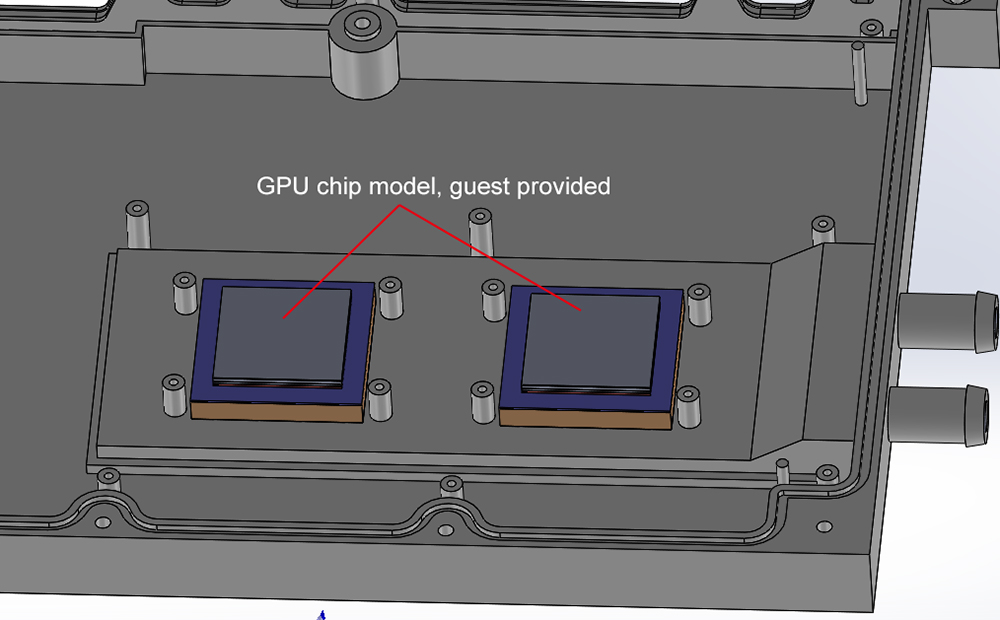

GPU chip model, guest provided
● GPU chip model, guest provided

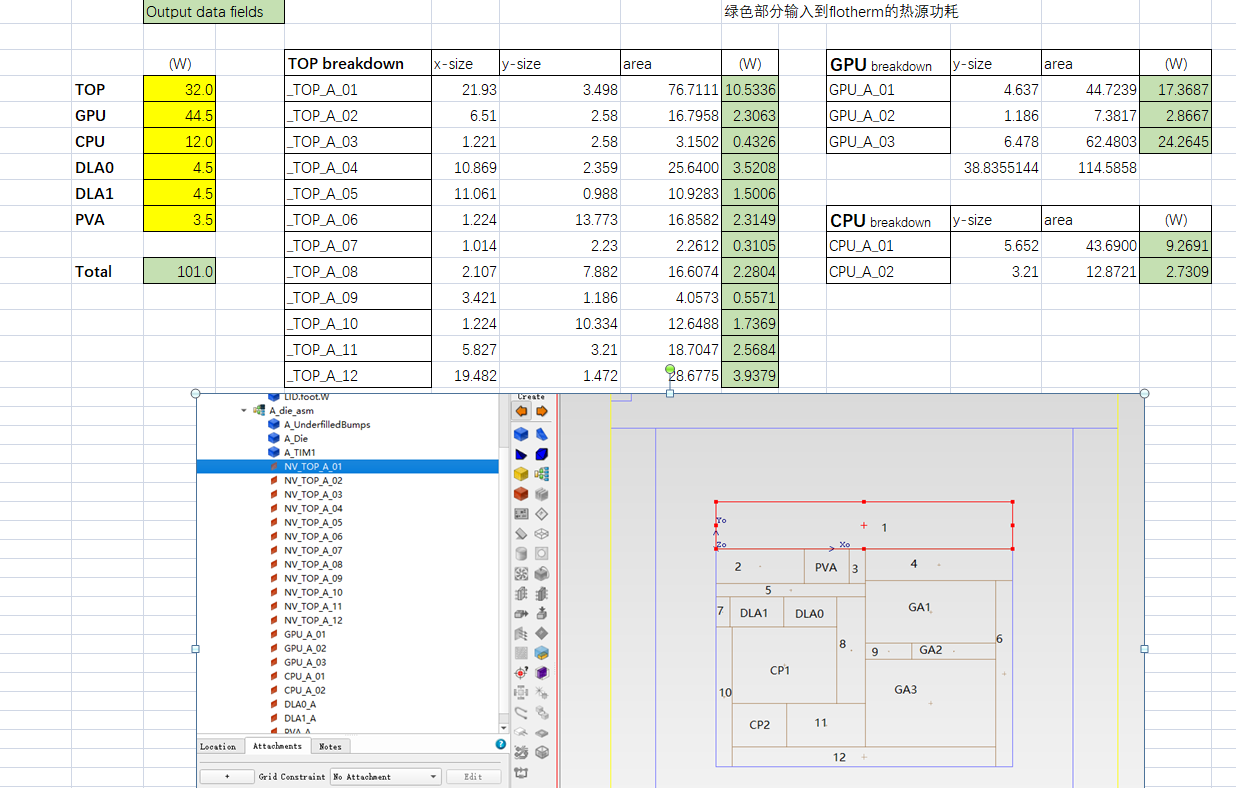

GPU Chip Specific Power

GPU Chip Specific Power

Since the GPU has a height tolerance of +/-0.15 and the heatsink copper block has a tolerance of +/-0.10, a 0.3mm gap is reserved. A thermal grease with 7.5W/mk is used (as shown in the bottom image), with the simulated thickness set at a maximum of 0.6mm and K value at 6.0W/mk (actual is 7.5W/mk).

Contact us

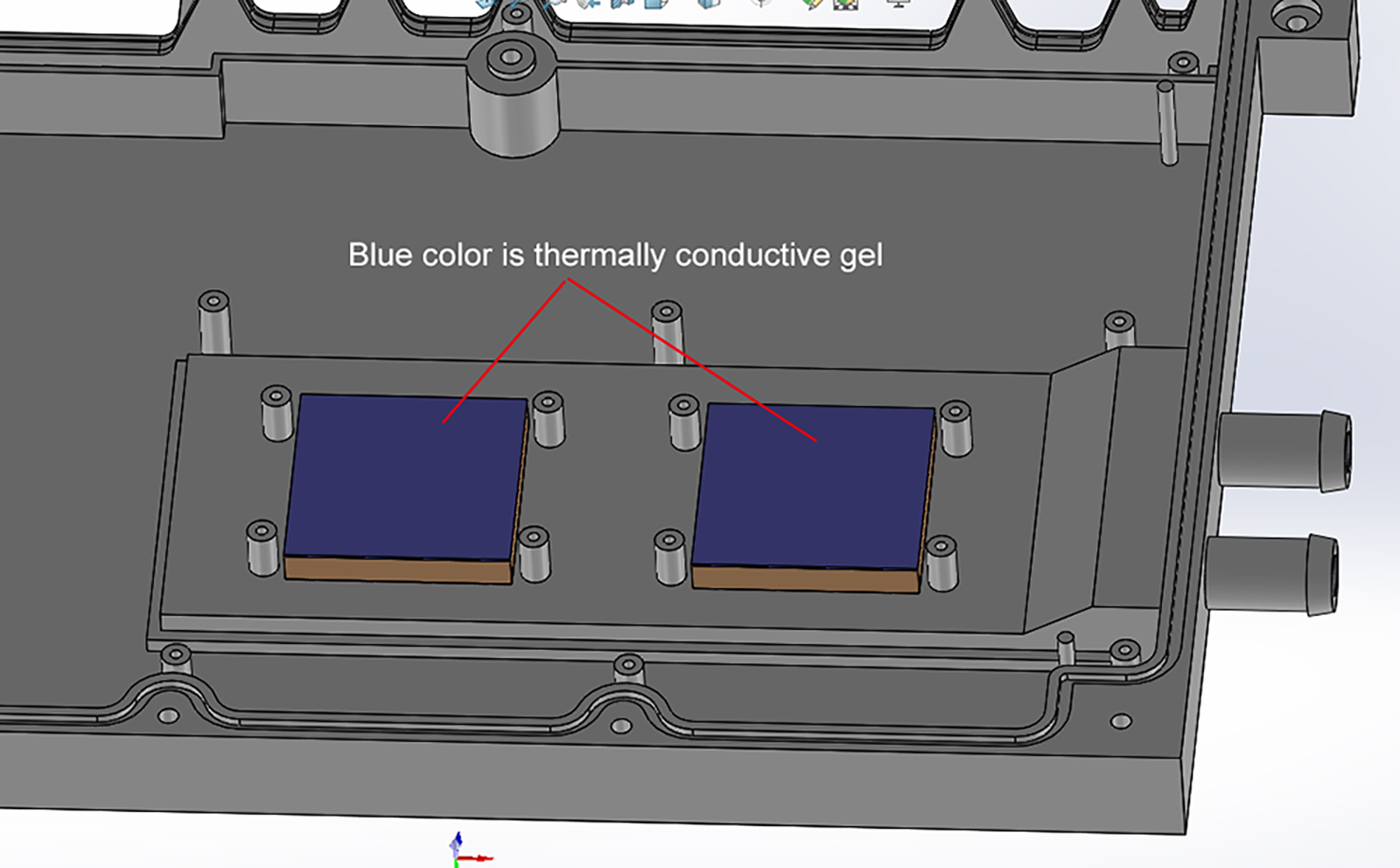

Blue color is thermally conductive gelIDC Liquid Cooling Project a

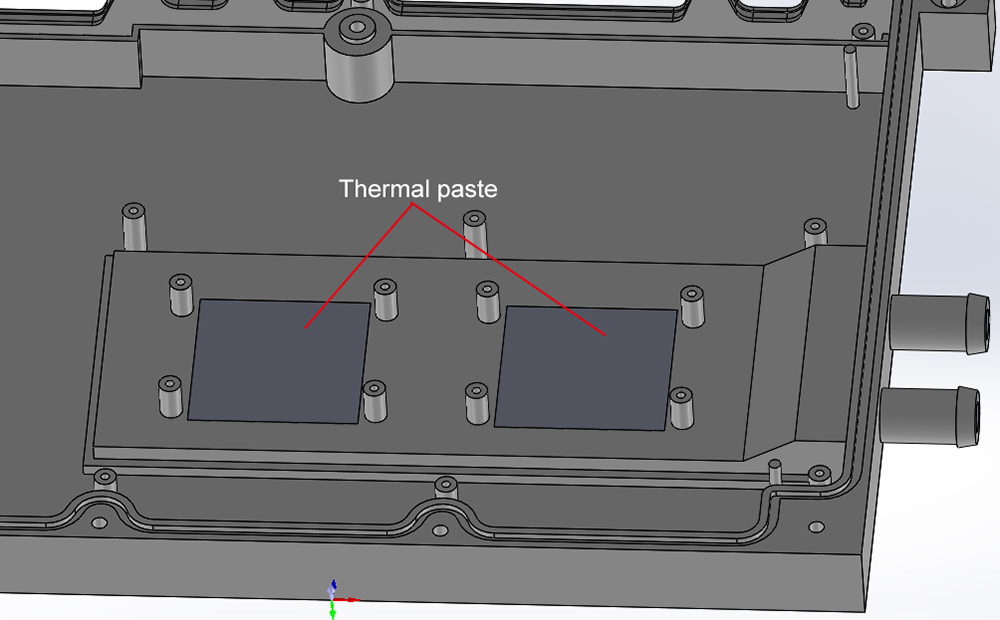

The cold plate is made of ADC12 with a thermal conductivity of 96W-mk

● 0.1mm thick thermal paste is applied between the copper block and the cold plate, with a K value set at 3W/mk.

● The cold plate is made of ADC12 with a thermal conductivity of 96W/mk.

198-projects-right-1
IDC Liquid Cooling Project bn

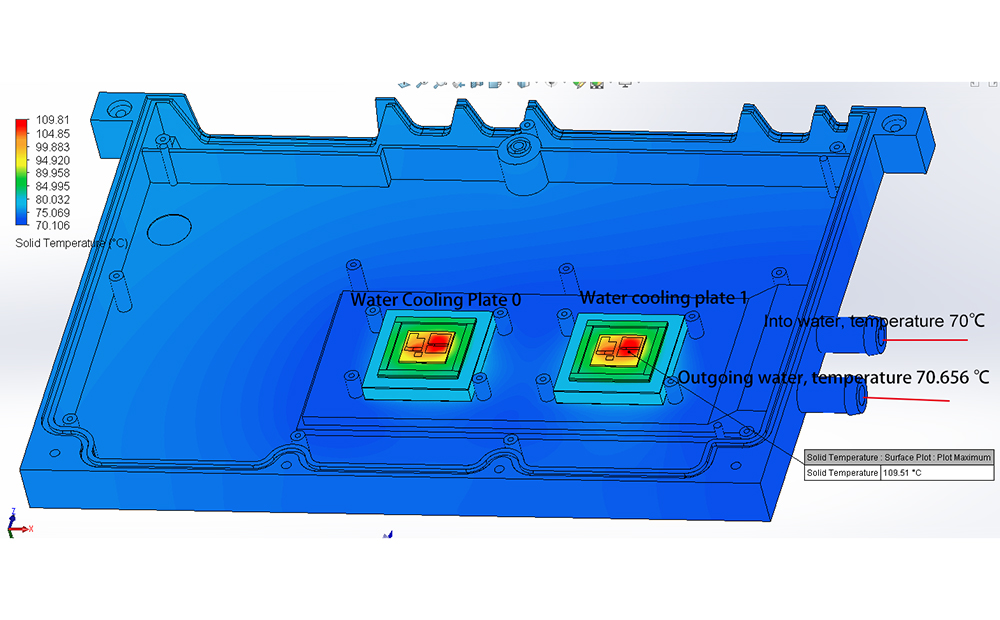

●Temperature Distribution Map:Total flow rate of 5L/min, water temperature difference of 0.656°C between inlet and outlet, maximum GPU temperature 109.51°C.

198-projects-right-1
IDC Liquid Cooling Project vc

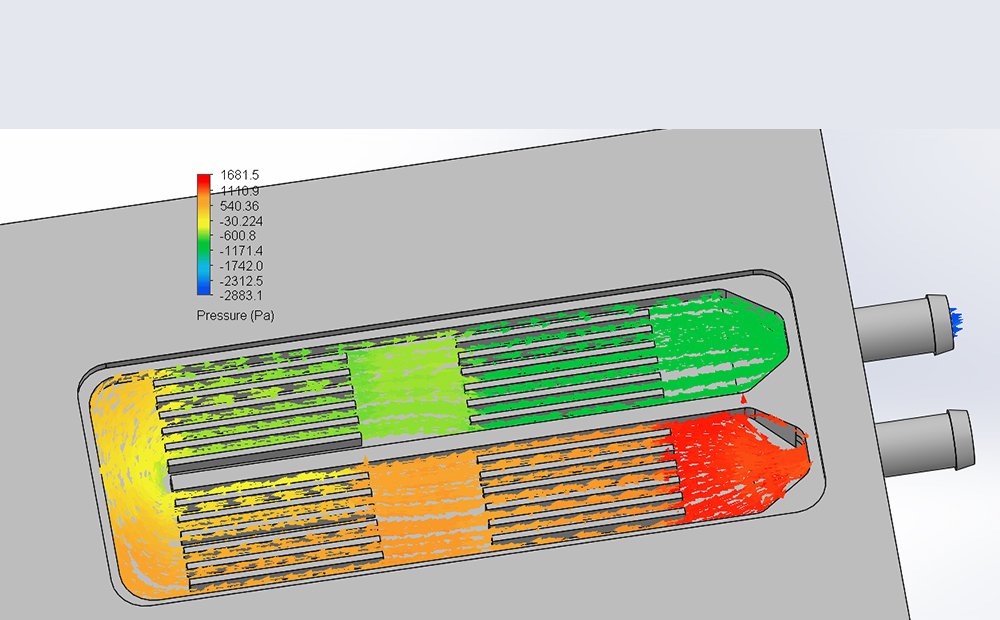

Fluid Pressure Distribution Map: With a flow rate of 5L/min.

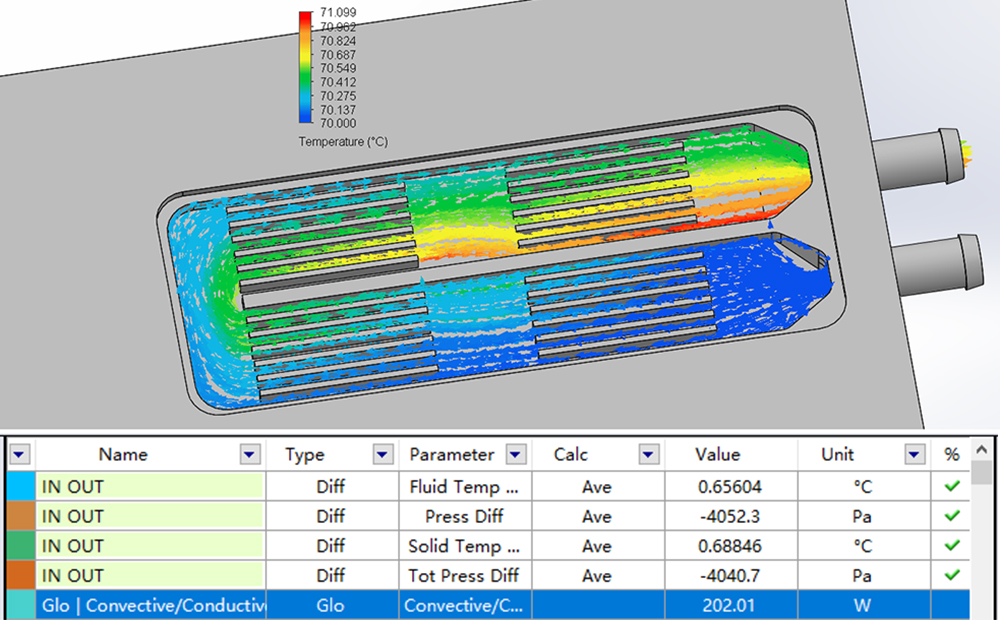

Total water temperature difference: 0.656°C

● Total pressure drop: 4.05KPa

●Total power: 202W

198-projects-right-1
Fluid Pressure Distribution Map

Fluid Pressure Distribution Map: With a flow rate of 5L/min.

198-projects-right-1
