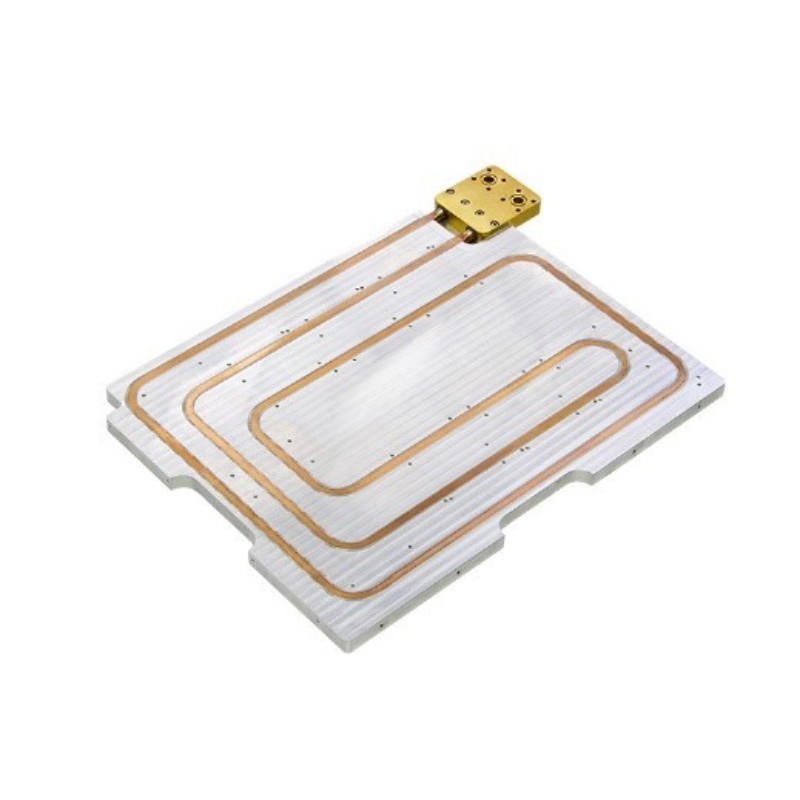

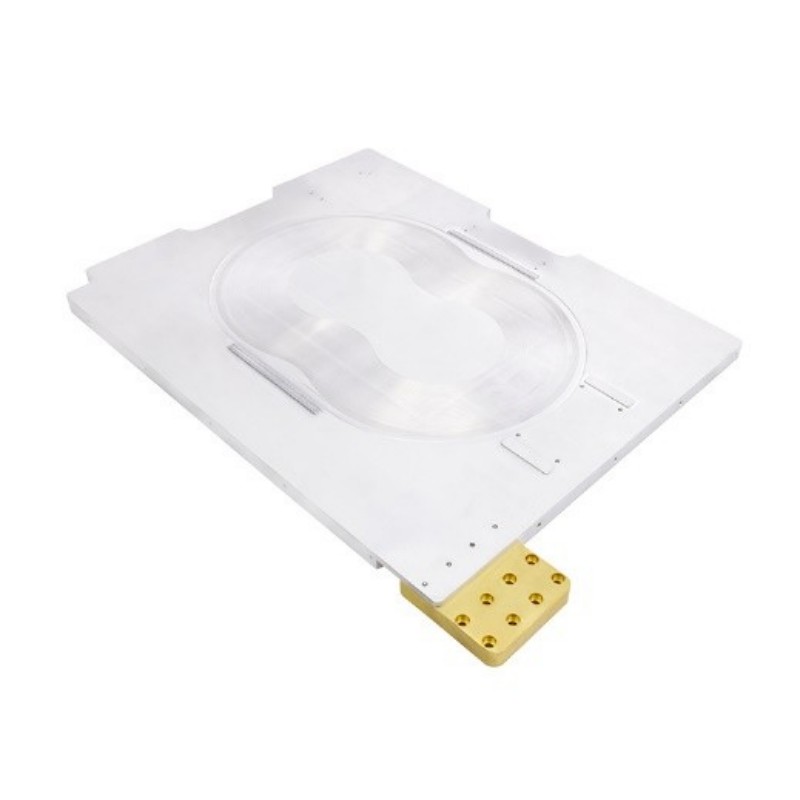

Heatsink EP-05 For Laser Systems

The EP-05 Laser Heatsink offers advanced thermal management with a heat dissipation capacity of up to 6 kW, designed specifically for high-power laser systems. Constructed from premium AL6061 aluminum alloy and C1020 copper, it ensures superior thermal conductivity and durability.
Manufactured using precise CNC machining, the EP-05 guarantees excellent dimensional accuracy and a smooth finish, ensuring seamless integration with your laser equipment. The embedded copper tube technology optimizes heat transfer, rapidly absorbing and distributing heat across the entire surface for more efficient cooling.
Ideal for high-power industrial lasers, medical lasers, and laser engraving systems, the EP-05 provides consistent thermal control, preventing overheating and ensuring continuous, high-performance operation. Its 6 kW cooling capacity makes it an essential component in applications where thermal management is critical for optimal performance and equipment longevity.

CNC Machining & Embedded Heat PipeTongyu

The EP-05 Laser Heatsink utilizes advanced CNC machining and embedded copper tube technology to provide exceptional thermal management, ensuring high efficiency and precise manufacturing quality.

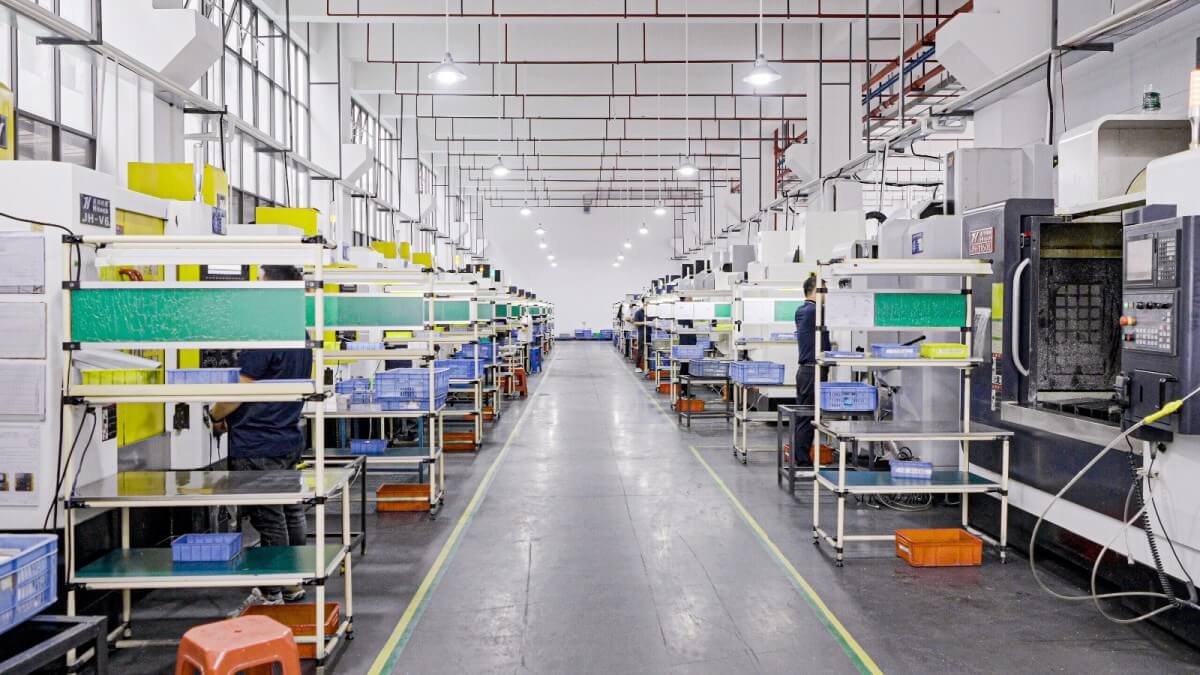

CNC Machining: The exterior and fins of the EP-05 are meticulously shaped and cut using precision CNC machining. This process guarantees high dimensional accuracy and smooth surface finishes for each component. CNC machining allows for precise control over every detail, ensuring a perfect fit with laser equipment and enhancing the overall cooling efficiency of the heatsink.

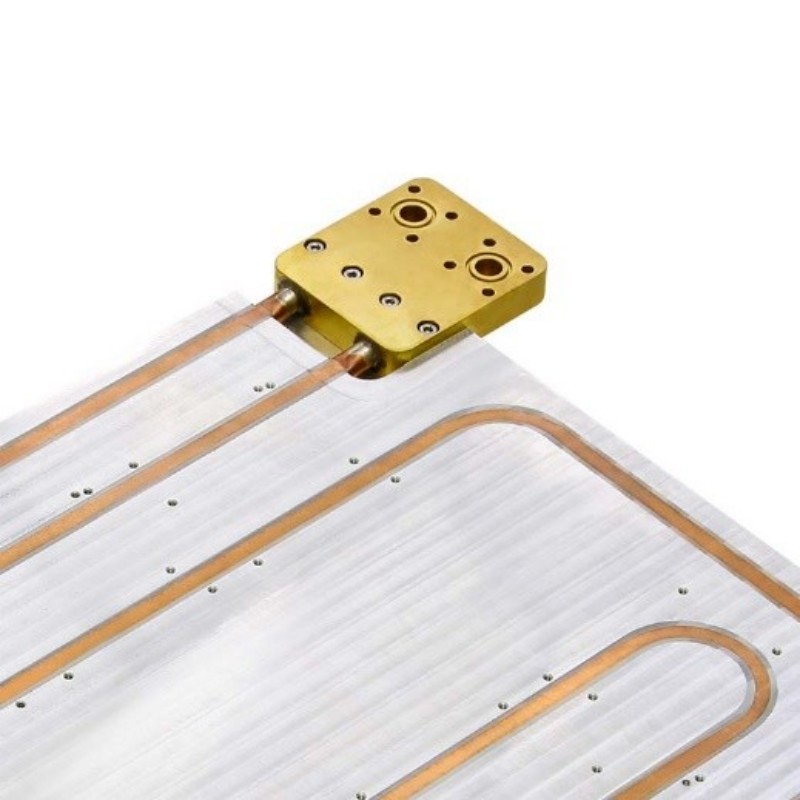

Embedded Copper Tube Technology: The embedded copper tubes are precisely inserted into the aluminum base material of the heatsink. Copper, known for its superior thermal conductivity, rapidly absorbs the heat generated by the laser system and effectively transfers it to the heatsink surface. This embedded copper tube design significantly boosts heat transfer efficiency, ensuring fast and uniform heat distribution, and preventing localized overheating.

Product DescriptionTongyu

Application	Laser Systems
Material	AL1061+C1020
Power	6KW
Process	CNC & Heat pipe

Application ScenariosTongyu

The EP-05 Laser Heatsink is perfectly suited for high-power energy lasers, providing critical thermal management to ensure consistent performance and reliability. With a cooling capacity of up to 6 kW, this heatsink is specifically designed to handle the high thermal demands of energy laser systems, making it an ideal choice for applications in industrial and scientific fields where precision cooling is crucial.

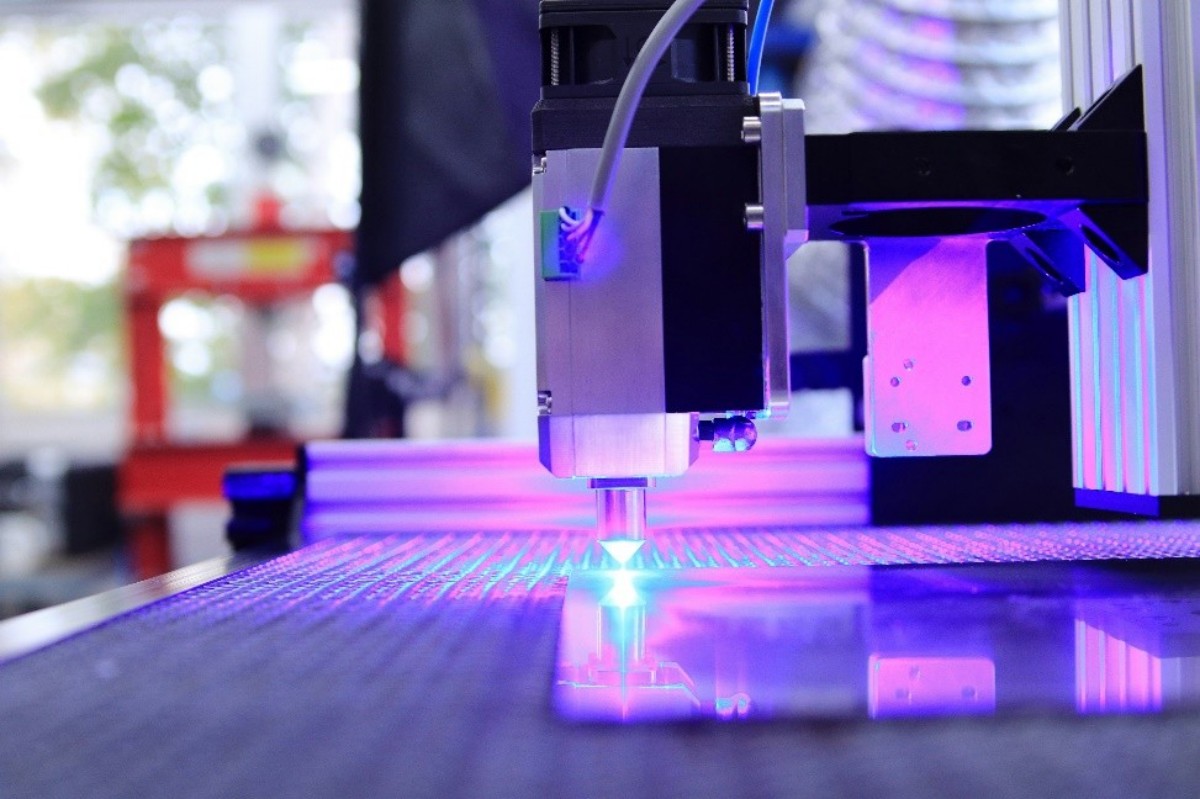

Laser Cutting and Welding: The EP-05 efficiently cools the laser components in industrial cutting and welding systems, where high power density and heat generation are common. By maintaining optimal operating temperatures, it helps ensure accurate processing and extends the lifespan of the equipment.

Fusion and Material Processing: In energy laser applications used for fusion research or material processing, the EP-05 plays a crucial role in managing the heat generated by the laser's high-energy output. Effective thermal control enables better precision and stability during the laser treatment of metals and other materials.

Laser Pumping Systems: For laser pumping systems, where high-power energy lasers are used to excite other laser sources, the EP-05 ensures that excess heat is rapidly dissipated, allowing the system to maintain peak efficiency over long periods.

Scientific Research: Energy lasers are often used in scientific research and laboratories, where high-power lasers generate intense heat. The EP-05 keeps these lasers at their optimal temperature, ensuring accurate results and uninterrupted research operations.
