Heatsink NC-02 For Photography Light

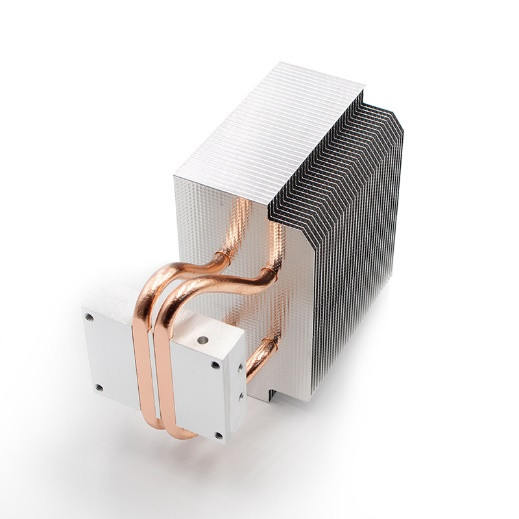

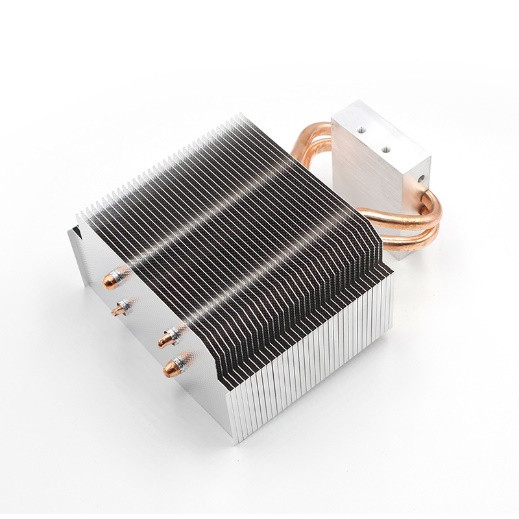

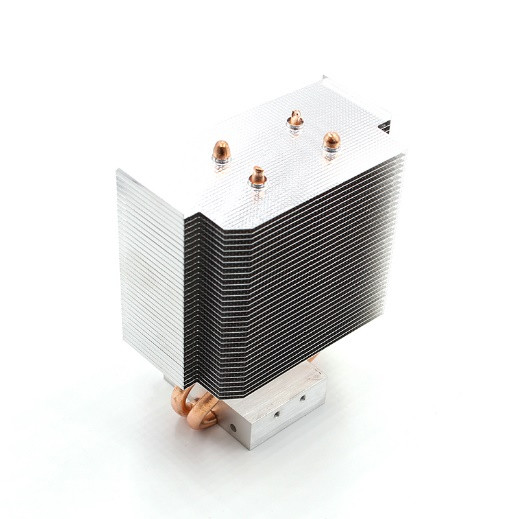

The NC-02 is a specialized heatsink engineered for efficient cooling in professional photography lighting. Utilizing a combination of Stamping and Heat Pipe Fin HeatSink technology, this heatsink achieves a reliable cooling capacity of 100W, ensuring stable performance even in demanding lighting setups. Constructed from high-quality AL1100 aluminum and Cu1020 copper, the NC-02 incorporates two 6mm-diameter heat pipes to provide rapid thermal conductivity, efficiently dispersing heat and supporting consistent lighting output. The heatsink is securely installed with a screw-mount system, making it well-suited to diverse studio environments. With a low thermal resistance of just 0.15°C/W, the NC-02 is an ideal solution for photographers seeking dependable cooling in professional lighting applications.

    Heat Pipes HeatsinkTongyu

    Heat pipes leverage the efficiency of fluid phase change to offer reliable and rapid heat transfer, making them a top choice in versatile thermal management solutions. These devices consist of three essential parts: a vacuum-sealed outer shell, a working fluid, and a wick structure. The sealed shell maintains a vacuum environment, allowing the heat pipe fluid to continuously transport heat for decades without degradation. The working fluid, selected for its phase-changing properties within the operating temperature range, is carefully chosen to ensure compatibility with the materials of the shell and wick. Meanwhile, the wick enables passive fluid movement throughout the heat pipe, facilitating effective heat transfer.
    Heatsink NC-01 For Stage Lights (4)

    Product DescriptionTongyu

    Application

    Photography Light

    Material

    AL1100+Cu1020

    Weight

    0.27

    Power

    100W

    Heat Pipes

    2*6mm

    Thermal Resistance

    0.13°C/W

    Sizes

    91*60*23mm

    Process

    Stamping & Heat pipe Fin HeatSink

    Application ScenariosTongyu

    • The NC-02 is a specialized heatsink engineered for efficient cooling in professional photography lighting

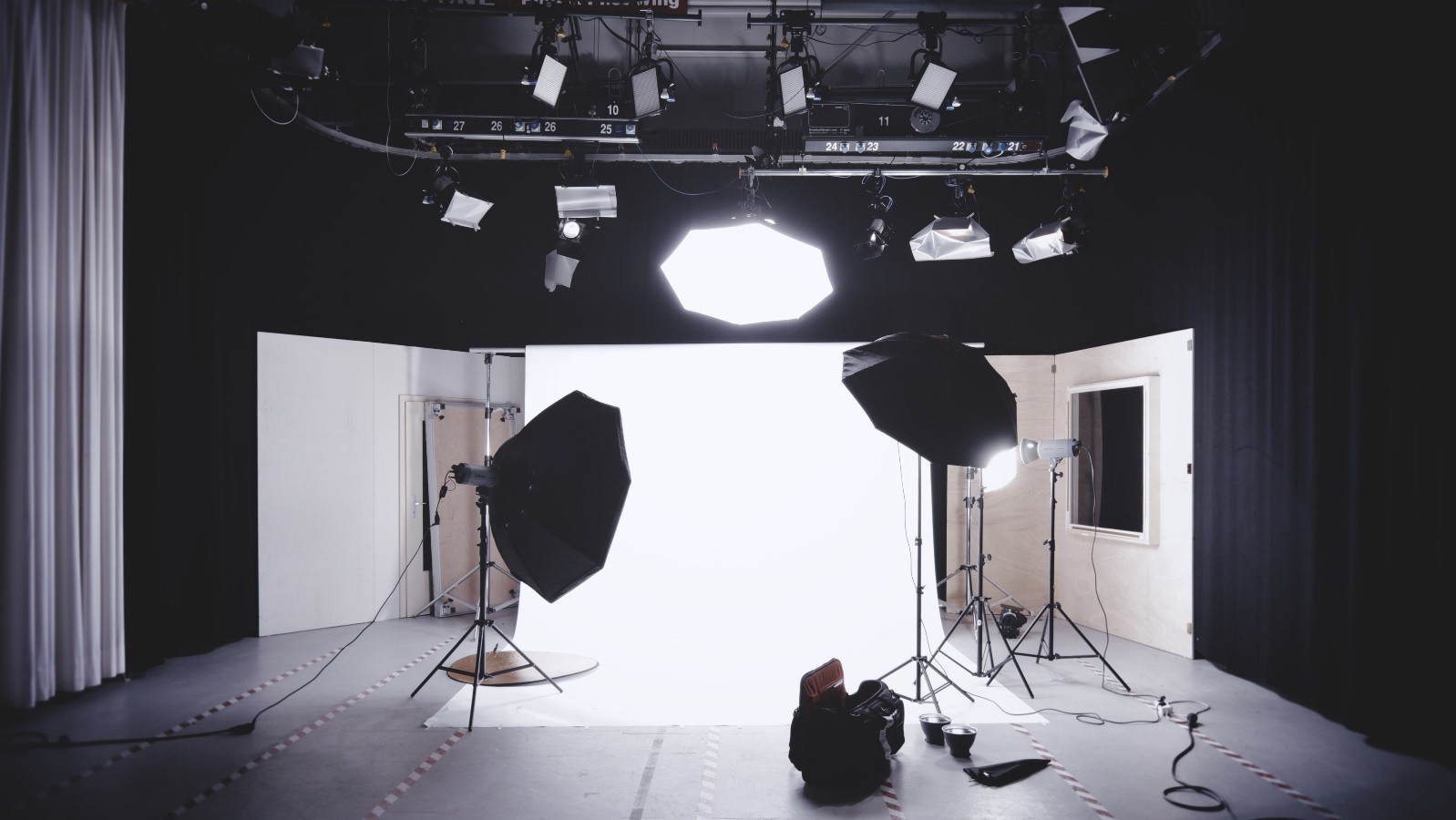

      The NC-02 is specifically designed for high-intensity photography lighting, offering efficient thermal management to maintain peak performance in prolonged sessions. Essential in photography studios, film sets, and other professional environments, the NC-02 helps prevent overheating, ensuring stable illumination and consistent lighting quality. This makes it ideal for photographers and cinematographers who require reliable equipment under extended operation. With its robust build and effective heat dissipation, the NC-02 supports lighting equipment to function smoothly, reducing thermal stress and enhancing the longevity of the lighting setup in demanding production environments.
