Basic Knowledge of CPU Air Cooling Heatsinks

A CPU heatsink is an essential component that assists in cooling the CPU, providing a stable thermal environment. If the CPU cooler is poorly selected, the CPU will reduce its frequency automatically to prevent overheating and damage, which leads to performance drops. Therefore, choosing a suitable CPU air cooling heatsink is critical.
So, how do you choose the right air cooler for your CPU? This article introduces some fundamental knowledge about CPU air cooling heatsinks.

How Does a CPU Air Cooler Work?

The base of the CPU heatsink directly contacts the CPU surface. Heat generated by the CPU is transferred via thermal grease to the base of the heatsink, which then passes the heat through a heat conduction system to the heatsink fins. Finally, a fan blows air across the fins to remove the heat.

---

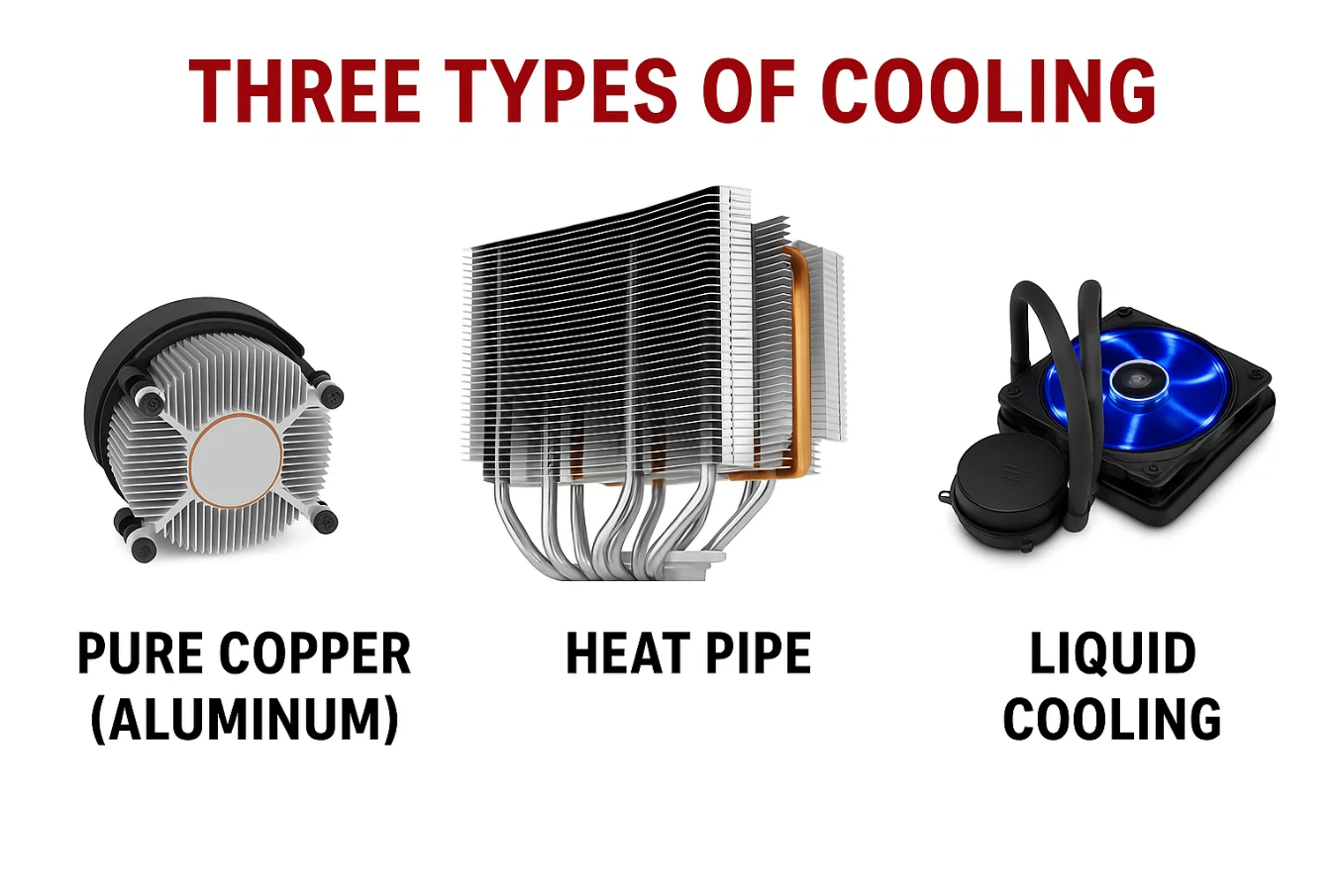

Three Types of Heat Conduction Methods

1. Solid Copper (or Aluminum) Conduction

This method offers relatively low heat conduction efficiency, but it’s simple in structure and low in cost. Many stock CPU coolers use this type.

2. Heat Pipe Conduction

This is currently the most widely used method. The copper heat pipes are hollow and filled with a small amount of thermal liquid. When the temperature rises, the liquid at the base evaporates and absorbs heat. After transferring heat to the fins and cooling down, it condenses into liquid and flows back to the base, forming a continuous cycle. This method is highly efficient, which is why most modern CPU coolers adopt it.

3. Water Cooling

Commonly known as “liquid cooling,” although it doesn't always use pure water but rather a high thermal conductivity fluid. This method uses liquid to carry heat away from the CPU. The heated liquid flows through a complex radiator path, where fans remove the heat and the cooled liquid recirculates.

---

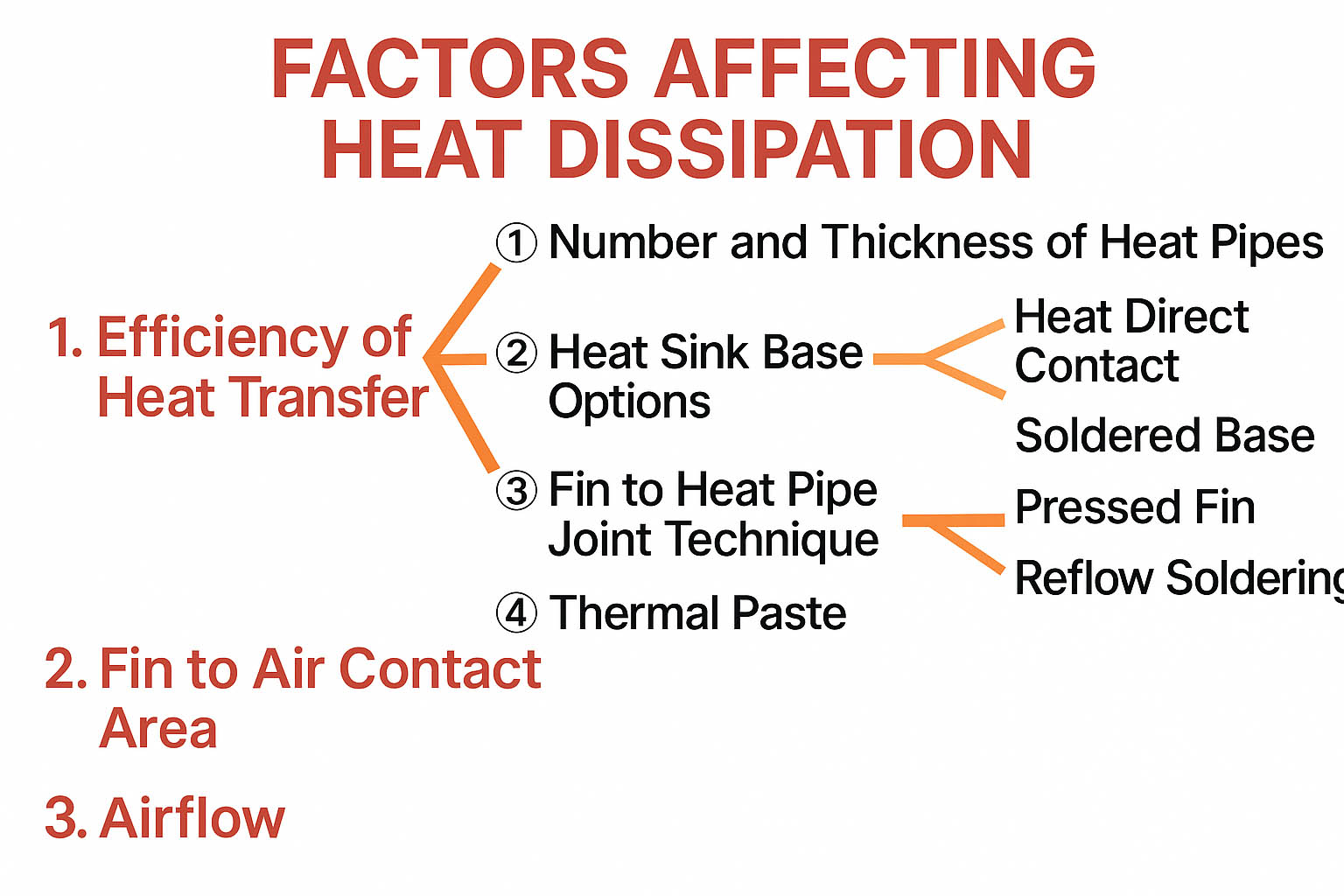

Factors That Affect Air Cooling Performance

Efficiency of Heat Transfer

This is the core of thermal performance and is influenced by several key factors:

✔ Number and Thickness of Heat Pipes

More heat pipes generally mean better cooling.

　　• 2 pipes: basic level

　　• 4 pipes: sufficient for most uses

　　• 6 or more pipes: high-end coolin Common diameters include 6mm and 8mm, with thicker pipes offering better performance.

✔ Contact Surface Between Fins and Air

 The heatsink fins are responsible for dissipating heat from the pipes into the air. The larger the fin surface area exposed to air, the better the cooling effect. Some manufacturers add raised bumps or patterns to increase surface area and airflow disturbance for better heat exchange.

✔ Airflow

Airflow is usually measured in CFM (Cubic Feet per Minute). A larger airflow means faster heat removal.

Key parameters include:

　　• Fan speed (RPM)

　　• Static pressure

　　• Fan blade size

　　• Noise level (dBA)

        Most modern fans come with PWM (Pulse Width Modulation), which allows intelligent speed adjustment based on temperature.

✔ Heatsink Base Design

　　• Heat Pipe Direct Touch

A common design in budget coolers. To ensure flat contact with the CPU, copper pipes are flattened and polished. However, this thins the pipes and may cause uneven surfaces over time, reducing efficiency.

Trusted brands polish the copper to a smooth finish for better contact and higher efficiency. Inferior products may have uneven surfaces, resulting in poor contact and ineffective pipes.

　　• Soldered Copper Base with Mirror Polish

This method uses a full copper base soldered to the heat pipes, then polished to a mirror finish. It provides excellent contact area and thermal conductivity, usually found in mid-to-high-end CPU coolers.

　　• Vapor Chamber (Heat Spreader Plate)

Rare in air coolers due to high cost, this method works similarly to heat pipes, using phase-change fluid to distribute heat evenly and efficiently.

✔ Thermal Paste

Due to manufacturing limitations, the CPU and heatsink cannot achieve a perfect contact surface. Thermal paste is used to fill microscopic gaps to enhance heat conduction.

　　• Apply a thin, even layer only. Too much paste can insulate instead of conduct.

　　• Standard thermal paste conductivity: 5–8 W/m·K

　　• High-end pastes: 10–15 W/m·K

✔ Fin-to-Pipe Connection Craftsmanship

The heat pipes must be in good contact with the fins to efficiently transfer heat. There are two main methods:

　　• Reflow Soldering

The heat pipes and fins are soldered together. This method is more costly but offers excellent conductivity and long-term reliability.

　　• Pressed Fin (Fin Punching)

Also known as “fin insertion.” Holes are made in the fins, and pipes are mechanically pressed through them. While cost-effective, this method must be executed precisely to avoid loosening or poor contact.

---

Types of Air Cooling Heatsinks

1. Passive Cooling (Fanless Design)

   A purely fanless design that relies on natural convection to dissipate heat.

   • Pros: Zero noise

   • Cons: Low thermal performance

   • Best for: Low-power or silent builds

2. Top-Down (C-Type) Air Coolers

   These coolers blow air downward, cooling the CPU as well as surrounding components like the motherboard and RAM.

   • Pros: Compact and helpful for component cooling

   • Cons: Less efficient than tower designs; may disrupt case airflow

   • Best for: Small cases or low-heat CPUs

3. Tower (U-Type) Air Coolers

   Tower coolers stand vertically like a tower, pushing air through large fin stacks in a single direction.

   • Pros: Excellent performance, supports large fans and fin surfaces

   • Cons: May block RAM slots; relies on additional case fans for airflow

   • Best for: Gaming PCs, workstations, or overclocked CPUs

Conclusion

Choosing the right CPU air cooling heatsink involves understanding thermal transfer mechanisms, fan design, fin structure, and your PC’s overall layout. Whether you're building a quiet workstation or a high-performance gaming rig, applying this knowledge will help you select an efficient, long-lasting cooling solution.
