Copper Heatsinks and Cooling Solutions

Introduction

Copper has long been one of the most important materials in electronics cooling, thanks to its outstanding thermal conductivity and reliability. As power density in consumer electronics, servers, and AI data centers continues to rise, copper has evolved from a traditional heatsink material into a core enabler of next-generation cooling solutions. This article explores the fundamentals of copper’s thermal performance, the major types of copper components, and its role in emerging cooling technologies.

Why Copper? Core Thermal Properties

• High Thermal Conductivity:Copper’s thermal conductivity reaches 401 W/(m·K), second only to silver but at a fraction of the cost.
• Specific Heat Capacity:At 385 J/(g·K), copper effectively absorbs and stores heat.
• Melting Point:1083°C, far beyond the operating range of electronic devices, ensuring stability.
• Crystal Structure:Its face-centered cubic (FCC) lattice allows free electron movement, enabling rapid heat transfer.

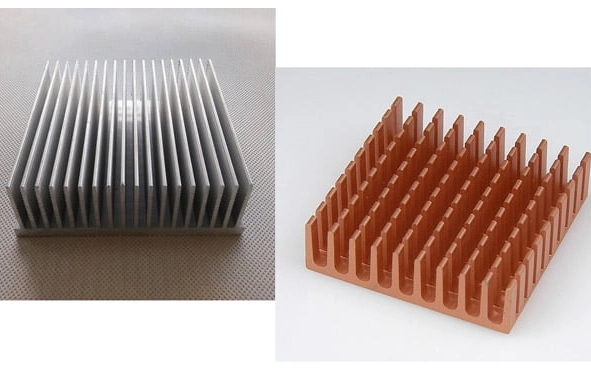

Compared with aluminum (237 W/(m·K)), copper provides a clear performance advantage in high-power density applications such as GPUs, CPUs, and 5G base stations.

Core Copper Cooling Components

1. Copper Base Plates

• Function:Direct contact with heat sources (CPU, GPU, LED module).
• Specs:Thickness 3–10 mm; flatness ≤0.05 mm; conductivity ≥380 W/(m·K).
• Applications:Server CPU coolers, LED modules.

2. Copper Foil

• Function:Ultra-thin heat spreading layer.
• Specs:05–0.3 mm thickness; easily stamped.
• Applications:Smartphone SoC cooling, flexible PCBs.

3. Copper Blocks

• Function:Local heat storage and diffusion.
• Specs:Volume 5–50 cm³.
• Applications:GPU memory modules, RF modules in 5G base stations.

Advanced Heat Transfer Components

Heat Pipes

• Structure:Copper tube, sintered wick, working fluid.
• Performance:Effective thermal conductivity 5000–10000 W/(m·K).
• Applications:Laptop CPUs, GPU cooling modules.

Vapor Chambers

• Structure:Flat copper cavity with microchannels.
• Advantages:2D heat spreading; 3–5× larger diffusion area than heat pipes.
• Applications:High-end smartphones, ultra-thin laptops.

Copper Heat Dissipation Extensions

• Copper Fins:1–0.3 mm thickness, optimized for turbulence and convection.
• Copper Radiators:Used in liquid cooling loops for HPC and data centers.

Copper in Liquid Cooling Systems

• Copper Cold Plates:Microchannel designs (0.5–2 mm) capable of handling >100 W/cm² heat flux.
• Quick Disconnect Fittings:Nickel-plated copper, leak-free design for data center maintenance.

Innovative Copper Technologies

• Sintered Copper Wick:For heat pipes and vapor chambers.
• 3D-Printed Copper Heatsinks:Topology-optimized structures with up to 3× larger surface area.
• Copper Plating on Plastics/Aluminum:Cost-effective localized heat dissipation.

Copper in 3C Electronics

• Smartphones:Copper foils + vapor chambers reduce SoC temperature by 8–12°C compared to graphite sheets.
• Laptops:Multi-heat pipe and vapor chamber hybrid designs achieve heat flux up to 80 W/cm².
• Wearables & TWS Earbuds:Ultra-thin copper films and copper coatings improve heat spreading without weight penalty.

Copper in AI Servers & Data Centers

• GPU/CPU Cooling:NVIDIA H100 GPU cold plate uses copper microchannels (0.5 mm hydraulic diameter) with extremely low thermal resistance (0.08°C/W).
• Immersion Cooling:Pure copper tubes with passivation coating withstand dielectric fluid environments.
• Power Modules:Direct Copper Bonded (DCB) substrates and copper busbars enable low resistance and high reliability.

Challenges and Future Directions

• Weight & Cost:Copper is heavier and more expensive than aluminum. Solutions include copper-graphite composites, porous copper, and recycled copper (up to 95% reuse).
• Advanced Manufacturing:3D printing, nano-sintered joints, and microjet copper arrays push thermal resistance lower than traditional machining.
• Hybrid Materials:Copper-diamond and copper-graphene composites target ultra-high conductivity (>600 W/m·K), though cost remains a barrier.

Conclusion

Copper’s unmatched thermal performance ensures its continued role in high-power electronics cooling. While weight and cost challenges remain, innovations in copper composites, additive manufacturing, and liquid cooling integration are transforming copper from a basic material into a strategic enabler of next-generation heat management.

As 3C devices demand ultra-thin solutions and AI servers push beyond 40 kW per rack, copper will remain at the core of thermal management—evolving from incremental improvements to true breakthrough innovation.
