When it comes to ensuring the reliability and performance of high-power electronic systems, effective heatsink design plays a critical role. From managing the thermal budget to selecting the right materials and calculating thermal resistance, each design decision impacts overall system stability. This guide explores the essential elements of custom heatsink design and how to optimize thermal performance.

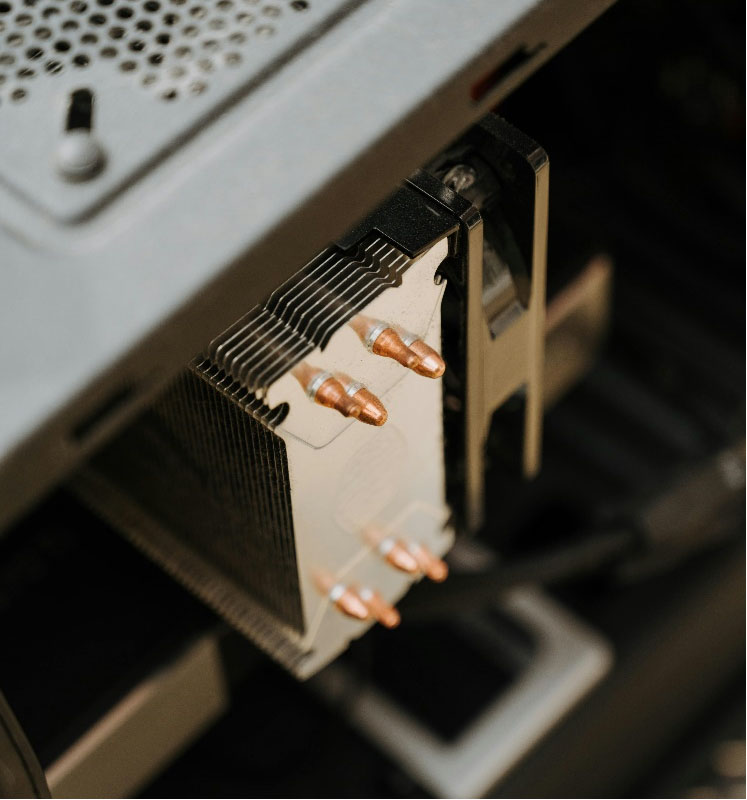

1. Understanding the Thermal Budget

The first step in heatsink design is to evaluate the thermal budget. This defines the maximum temperature range that a device can safely operate within. Key parameters include:

Tj (Junction Temperature) – the highest allowable temperature at the semiconductor junction

Tcase (Case Temperature) – the maximum temperature at the device’s package surface

Tamb (Ambient Temperature) – the surrounding environmental temperature

The thermal budget is calculated as:

♦ Thermal Budget = Tcase – Tamb

Designing within this thermal margin ensures that the heatsink will effectively manage heat without exceeding critical limits.

2. Heatsink Material Selection and Fin Design

3. Thermal Resistance and Heat Transfer Calculation

Accurate thermal resistance calculation is essential for custom heatsink design. The relationship between heat dissipation and temperature rise is given by the equation:

Tj = Pd × (Rjc + Rcs + Rsa) + Ta

Where:

♦ Tj = Junction temperature

♦ Pd = Power dissipation (W)

♦ Rjc = Junction-to-case thermal resistance (°C/W)

♦ Rcs = Case-to-sink thermal resistance

♦ Rsa = Sink-to-ambient thermal resistance

♦ Ta = Ambient temperature

How to Calculate Rsa (Heat Sink to Ambient Resistance)

Given Pd, Rjc, Rcs, and a defined thermal budget, you can solve for the required Rsa to ensure that your heatsink meets the necessary cooling capacity.

4. Thermal Interface Materials (TIM)

Thermal Interface Materials bridge microscopic gaps between the device surface and the heatsink to reduce contact resistance.

♦ Types: Thermal grease, thermal pads, phase-change materials, or adhesives

♦ Application: Apply a thin, even layer to ensure full coverage without excess, which can hinder heat transfer.

TIMs play a small but crucial role in the overall thermal chain.

5. Enhancing Cooling with Forced Convection

When natural convection is not sufficient, forced convection using fans becomes necessary.

♦ Fans: Help increase airflow across heatsink fins

♦ Orientation: Design airflow paths that reduce turbulence and maximize contact with fin surfaces

♦ Ventilation: Ensure that the system allows for continuous intake and exhaust to avoid heat buildup

6. Additional Custom Heatsink Design Factors

Custom heatsink solutions must also address:

♦ Size and Geometry: A heatsink must fit within the device enclosure while providing sufficient surface area

♦ Mounting Method: Secure attachment using screws, clips, or adhesives ensures proper mechanical and thermal contact

♦ Environment: Take into account dust, humidity, and vibration, especially in automotive or industrial use cases

Smarter Heatsink Design for Better Reliability

A well-designed heatsink is not simply about removing heat—it's about maintaining long-term performance, safety, and reliability. Whether you're designing for industrial equipment, power electronics, or consumer devices, understanding heat transfer dynamics and customizing your heatsink solution is key.
