How To Make a Custom Heat Sink: A Step-by-Step Guide

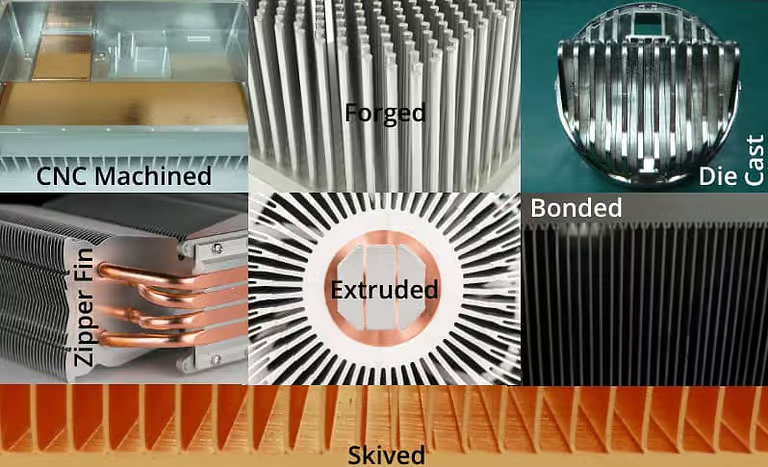

Heat sinks are critical components for managing thermal performance in electronics, from gaming PCs to industrial machinery. While pre-made options are widely available, creating a custom heat sink ensures a perfect fit for unique projects. This guide walks you through designing and building a DIY heat sink, optimizing it for efficiency and compatibility.

Why Build a Custom Heat Sink?

Standard heat sinks may not always meet specific size, shape, or cooling requirements. A custom design allows you to:

● Match exact dimensions of your device.

● Optimize surface area for better heat dissipation.

● Use materials tailored to your budget (e.g., aluminum for affordability, copper for superior thermal conductivity).

Materials You’ll Need

1. Metal stock: Aluminum (easy to work with) or copper (higher thermal conductivity).

2. Tools: Hacksaw or jigsaw, metal file, sandpaper (120–400 grit), drill.

3. Thermal adhesiveor epoxy.

4. Thermal paste(for attaching the heat sink to the device).

5. Measuring tools: Calipers, ruler.

6. Safety gear: Gloves, goggles.

Step 1: Design Your Heat Sink

1. Measure the heat source: Note the dimensions of the component (e.g., CPU, LED, transistor) requiring cooling.

2. Calculate surface area: More fins or ridges improve cooling but add weight. Balance efficiency with practicality.

3. Sketch the design: Include a base plate (to contact the heat source) and fins (to dissipate heat).

Pro Tip: Use free CAD software like Fusion 360 for precision, especially for complex fin arrangements.

Step 2: Cut and Shape the Base Plate

1. Cut the metal stock to your base plate dimensions using a saw.

2. Smooth edges with a metal file and sandpaper to prevent sharp edges.

3. Drill mounting holes if needed.

Step 3: Create the Fins

1. Cut thin metal strips (1–3mm thick) to your desired fin height.

2. Space fins evenly: Wider spacing improves airflow, while tighter spacing increases surface area.

3. Attach fins to the base plate using thermal adhesive. Apply sparingly to avoid blocking heat transfer.

Note: For soldered joints, use a torch and solder designed for metals like copper.

Step 4: Finishing Touches

1. Sand the entire assembly to remove burrs.

2. Clean with isopropyl alcohol to eliminate debris.

3. Apply thermal paste to the base plate before mounting it on your device.

Step 5: Test and Optimize

1. Attach the heat sink to your device and run a stress test (e.g., gaming, rendering).

2. Monitor temperatures using software (e.g., HWMonitor) or an infrared thermometer.

3. If temperatures are too high:

● Add more fins or increase their height.

● Switch to copper or improve airflow around the heat sink.

Advanced Tips for Better Performance

▶ Anodize aluminum: This coating improves corrosion resistance and minorly enhances cooling.

▶ Add a fan: Forced airflow drastically boosts heat dissipation.

▶ Use heat pipes: Embed copper pipes filled with coolant for high-heat applications.

Conclusion

Building a custom heat sink lets you tailor cooling solutions to your exact needs. By selecting the right materials, optimizing fin design, and testing rigorously, you can achieve professional-grade thermal management. Whether you’re cooling a DIY robot or an overclocked CPU, this project combines practicality with engineering creativity.
